Creating Heaps

# include  <ucr/heap.h>

struct HEAP_SPACE;

extern HEAP_SPACE* heap_init(void*space, size_t size);
extern void*heap_alloc(size_t size, HEAP_SPACE*space);
extern void heap_free(void*memory);

extern void heap_self_test(HEAP_SPACE*space);

Memory can be divided into heaps from which useful portions are allocated. The application may arrange for segments of memory to be converted into heaps with the heap_init function. Pass to this function a pointer to the start of the segment of memory, and the size of the memory, and heap_init will write into it necessary data structures and return a HEAP_SPACE cookie. heap_init only manipulates the memory within the space, so it is thread-safe.

For example, to create heaps from some architecturally defined segments of memory, use heap_init like so:

HEAP_SPACE*sram_segment = heap_init(SRAM_START, SRAM_SIZE);
HEAP_SPACE*fast_dram = heap_init(DRAM_START, DRAM_END-DRAM_START);

The HEAP_SPACE cookie is a pointer to an opaque type that the application uses to refer to a particular heap, in particular when allocating memory.

The heap_alloc function returns a pointer to memory pulled from the requested heap. For example, heap_alloc(16,fast_dram) returns a pointer to 16 bytes from the fast_dram heap. Besides the extra paramter to identify the heap from which memory is to come, this function behaves just like malloc.

The heap_free function releases memory back to the heap from whence it came. Notice that there is no HEAP_SPACE parameter required. When a segment of memory is allocated, a header is created in front of it that identifies the heap it came from. The heap_free function knows to look for this information and return the memory to the correct heap.

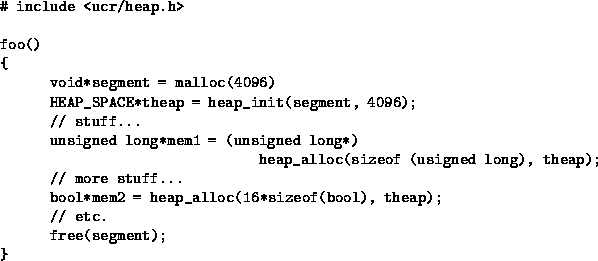

Figure 2: Basic Heap Allocation

The example if Figure illustrates a few of the basics of using heaps. Note that uCR does not include a special function for destroying heaps. Generally, heaps are permanent (segments of physical memory don't typically vanish) but as the above example shows, it may be perfectly reasonable to dynamically allocate a temporary heap. When pointers no longer refer to memory within the heap, you can destroy the heap simply by releasing the memory for the heap itself.
